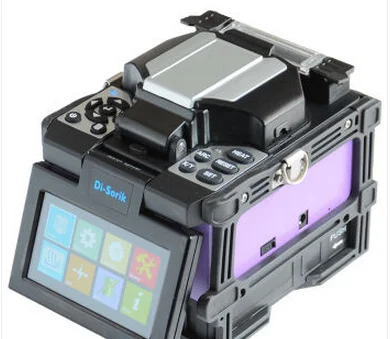

Fiber Optic Fusion Splicer

gt-80t fusion machine

Product name: Fiber fusion splicer
Applicable fiber: SM MM DS NZDS
Model Number: GT-80T
OEM: Available
产品描述：gt-80t fusion machine
在线订购

1.The advanced core to core fiber profile alignment system(PAS)
2.Friendly smart GUI
3.X/Y axes were displayed meanwhile, Magnification up to 304 times

4.8 Sec. splice time , 25 Sec. tube-heat time
5.Hig High-resolution true color 5.7 inch LCD display
6.Four display modes, fiber core visible
7.Store 4000 groups of splice results
8.Four display modes, fiber core visible
9.USB interface - for updates + result transfers
10.Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
11.Long Electrode Lifetime, up to 4000 times
12.Three Splicing modes: auto, half-auto, manual
13.Close shield splice automatically, Close heater lid heat automatically
14.One year Warranty
