Fiber Optic Power Meter

PON80 Fiber Optic Power Meter

Language: English/Chinese
Operating time: Above 70 hours
Color: Orange
Language: English/Chinese
产品描述：PON80 Fiber Optic Power Meter
在线订购

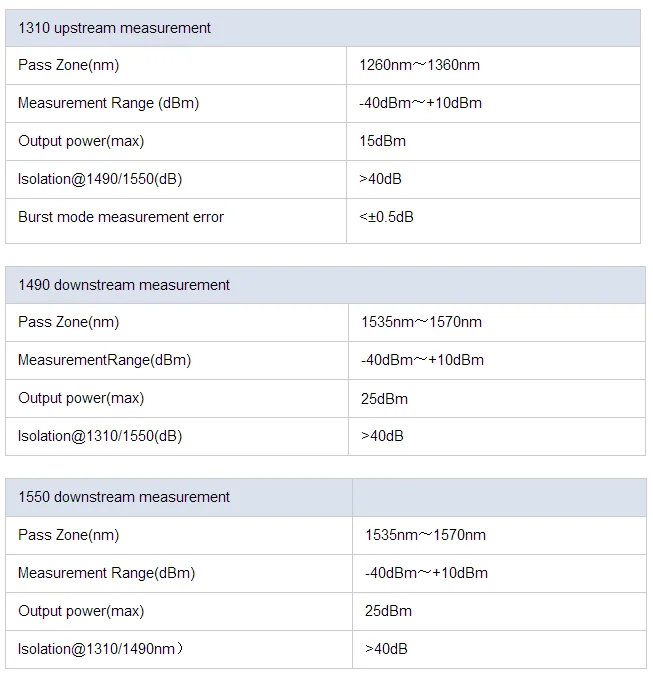

Specification

①It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.

②Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
③Used in Burst mode measurement of 1310nm upstream.
④Use the software connect with PC, setting the threshold, data transfer, and calibration the ave length.

⑤USB communication port enables data transfer to a PC.1000measurement item can be saved in PON80 PON power

meter or computer for data review.

⑥With optical power meter modual,include850、300、1310、1490、1550、1625sixs(PON80AP, PON80A without 850nm

wavelength ); With visual fault locator modual (PON80 and PON80AV）

⑦Optical power meter and VFL with one port.（onlyT-PO3213A）
⑧Optional Chinese/English display.

⑨Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn

and Fail respectively.

⑩10 minutes Auto-off function can be activated or deactivated
⑪Good key design,high sensitivity, greatly reducing the volume and weight of the tester.

⑫Different models corresponding to different function, according to own use to choose .
