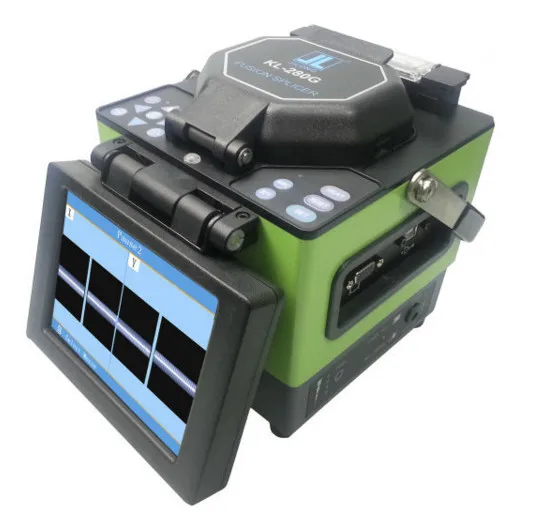

Chinese Fusion Splicer kl-280g Fiber Optic Splicing / Wire Splicing Machine

Model

KL-280G

Applicable fibers

SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)

Fiber cleaved length

8~16mm(Coating diameter:250µm)

16mm(Coating diameter: 250 ~ 1000µm)

Fiber diameter

Cladding diameter:80 ~150µm

Coating diameter:100~ 1000μm

Fiber Count

Single

Fiber aligning method

Core  aligning

Return loss

>60dB

Actual average splice loss

0.02dB (SM),0.01dB (MM),

0.04dB (DS),0.04dB( NZDS)

Splicing mode

auto

Splicing mode

12(templet), 188(user)

Typical Splicing time

Typical 9 sec,with standard SM fiber

Protection sleeve length

60mm, 40mm and a series of micro sleeves

Storage of splice result

5000 results,3 parameter per result

Tension test

2N

Fiber display and magnification

400X(X or Y view),200X(X and Y view)

Tube heating time

Typical 30 sec

Electrode life

2500

No.of splice/heating with battery

Typical 130 cycles (splice/tube heat) with inner Li-battery

Display screen

5 inch color LCD monitor

Image change over

The fiber image is turned upside down

Terminals

RS 232

Operating condition

0 ~ 5000m above sea level,0 ~ 95%RH and -10~50°C,respectively,Max. wind velocity of 15m/s

Power supply

AC100-240VwithAC adapter;inner Li-battery(6600mAH)

Dimensions

150mm(L) x150mm (W) x160mm (H)

Weight

3.52 Kg including battery
