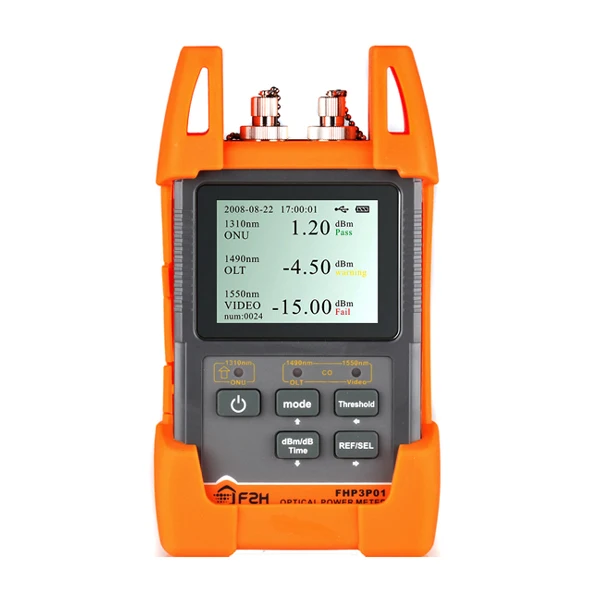

FHP3P01 PON Optical Power Meter

FHP3P01 PON Optical Power Meter

  • Product name: fiber optic power meter
  • Wavelength(nm): 800~1700nm
  • L-±2%inea
  • Model Number: FHP3P01
  • 产品描述:FHP3P01 PON Optical Power Meter
  • 在线订购

Packaging & Delivery

packaging Detailsstandard packageDelivery TimeShipped in 7 days after payment

As the industry's advanced PON-specific power meter, FHP3P01 PON Power Meter is the flagship of Grandway’s line of testing instruments specifically intended for FTTH and FTTP systems. It is the ideal tool for FTTH/FTTP service activation and troubleshooting.

Service Activation Testing:
Optimizing network reliability requires that all PON signals be measured all the way through service activation to ensure they meet established standards. FHP3P01 offers the features to address this need:

  1. Pass-through connection for ONT signal measurement and simultaneous measurement of all PON signals.
  2. Filtered detectors for individual measurement of each wavelength.
  3. Upstream burst detection at 1310nm.

Troubleshooting Testing:
Throughout the maintenance phase, various transmission problems, like fiber cuts, damaged/dirty connectors, macro bending, optical transmitter failure, etc. may ultimately cause signal loss or degradation. Benefit from FHP3P01 troubleshooting functionalities:

  1. Quick, on-site test and measurement of PON signals, anywhere on the network.
  2. Fault identification and isolation.


  1. Hand-held and battery operated
  2. FTF LCD Display with high resolution
  3. Filtered measurements with distinct power display
  4. Simultaneous measurement and display power lever of 1310,1490,1550nm WL
  5. Pass/fail function available. Up to10 user defined threshold
  6. Ability to upgrade software through USB interface
  7. 1000 sets data storage
  8. Software to generate Test Report


Measurement Range
(Continuous Datastream)
1310nm 1490nm 1550nm
-40dBm~+10dBm -40dBm~+10dBm -40dBm~+20dBm
Burst Measurement Range
(1310nm Bursted Signal)
Spectral Passband 1310nm 1490nm 1550nm
1260nm~1360nm 1480nm~1550nm 1539~1565nm
Insertion Loss 1.5dB
Accuracy ±0.5dB
Linearity ±0.2dB
Data Storage 1,000 sets
Display 2.8 inch TFT LCD
Refresh Rate of Display 2.5Hz
Threshold 10sets (configured via PC-based software)
Auto Power-off Yes
Number of Ports 2 (1 for ONU, 1 for OLT & video)
Operating Temperature -10 to +50°C
Relative Humidity 0%~95%, non-condensing
Power Supply 1.2V*4pcs Ni-MH AA; 12V AC/DC Adapter
Battery Life >20 hours
Dimension 190mm*105mm*55mm(L*W*H)
Net Weight 700g
Standard Accessories:
2*FC/PC adapters, 2*SC/PC adapters, 3*ceramic sleeves, 4*AA rechargeable batteries, AC/DC adapter, USB cable, test report, carrying bag, CD software, user manual
Optional Accessories:
2*ST adapters (model: N000500);
male FC to female LC adapter for LC connector (model: HD078)
2*FC/APC adapters, 2*SC/APC adapters
