Fiber Optic Fusion Splicer

AI-6 optical fusion splicer FTTH fiber splicing machine

Price: USD950 with shipping cost
Protection sleeve length: 20mm . 40mm. 60mm
Typical Splicing Time: 8 Seconds~15 Seconds
Dimensions/Weight: 500mmx350mmx320mm/8.8kg
产品描述：AI-6 optical fusion splicer FTTH fiber splicing machine
在线订购

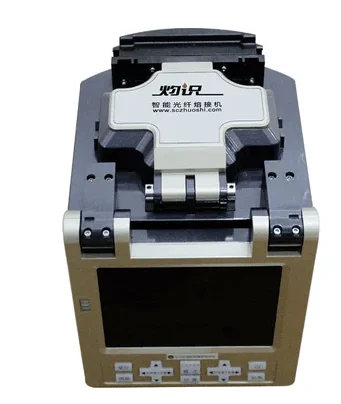

AI-6 fiber fusion splicer show :

AI-6 fiber fusion splicer , fuion splicing machine ftth optical fusion splicer AL-6

Automatic Intelligent Optical Fiber Fusion Splicer Is Widely Used In Optical Fiber Communications, Optical Cable Construction And Maintenance, As Well As Fiber To The Home Project (FTTH). It Releases The Arc To Fusion The Two Fibers, In Order To Achieve The Purpose Of Splicing. Signal Fire Automatic Intelligent Optical Fiber Fusion Splicer Uses Humanized Design, Sophisticated Production Technology With Stable And Excellence Performance.

Cost Advantage

We Use Phone To Control The Automatic Intelligent Fusion Splicer (AI-6), It Makes Use Of The Phone Hardware

Features And The Splicer Hardware Cost Is Reduced, We Also Reduced The Selling Price Of The Product, Finally

The Customers Buy High Quality Of Fusion Splicer With A Lower Price.

Quality Advantage

The Hardware In The Phone Is Substitute For The Software In The Fusion Splicer, It Simplifies The Structure

Quality Of The Product And Our Splicer Is More Stable And More Durable With Longer Life.

Expand functions in the future

We Will Continue To Introduce New Features Applications For APP Software, The New Applications Not Only

Allow Users To Complete The Splicing Work Better, But Also For The Users To Expand The Terms Of Project

Management, Expand Their Business Which Will Provide More Assistance For Customers.

More Intimate Service

If There Is Quality Problem From The Date Of Purchase Within Three Months, We Offer Free Replacement Machine.

Lifetime Warranty, Lifetime Free Parts.

When The Splicing Reaches 30,000 Times, Our Company Will Replace A Brand New Machine For Customer

Free Of Charge

Product Features

· Typical Splicing Time: 8 Seconds~15 Seconds

· Typical Heating Time: 30 Seconds~90 Seconds

· Stable Performance Of Dual Observation, Tune Core Type Fusion Machine

· Comply With ROHS And WEEE Standard

· Shockproof, Dustproof, Rainproof

· Display Magnification: 250 Times (Single Fiber Display)

· Large Capacity Lithium Battery, You Can Charge It While Splicing, Splicing And Heating Reach To 200 Times With Full Power Charged

· Long Battery Life, Charging Times Of Up To 300-500 Cycles

· Bright Low-Power LED Lights, To Ensure Normal Splicing At Low Light Conditions

· 5.6 Inches LCD Screen, Anti-Reflective Surface With A Transparent Protective Plastic

· Interface Is Simple, With Humane, Intelligent Menu Design

· USB Port For Easy Data Download And Software Updates

· Recessed Wind Cover, Can Perform Splicing At 15M / S Strong Winds

· Guarantee The Quality Of Splicing With 5000m Altitude

· High-Accuracy V-Groove, High Precision, Good Abrasion Resistance

Technical Parameters:

Applicable Fiber	SM, MM, DS, And NZDS (Non-Zero Dispersion Shifted Fiber)
Actual Average Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Splicing Time	8~15s
Heating Time	30~90 Seconds, Typical Heating Time: 30 Seconds (Heat Shrinkable Tube)
Fiber Display	X And Y-Axis Independent Display

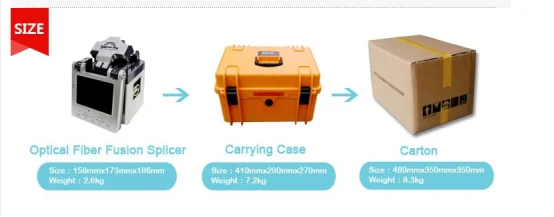

Measurement	Machine Size:158mmx173mmx186mm Packaging Size:500mmx350mmx320mm
Weight	2.6kg(Net) 8.8Kg(Gross)
Display	5.6 Inches LCD Screen, Anti-Reflective Surface With A Transparent Rotective Plastic
Return Loss And Wind Speed	≥60dB, 15m/S
Operating Environment	-10~+50 Degree (Temperature), 0~95%(Humidity), ~5000m(Altitude)
Data Storage Environment	-40~+80 Degree Temperature), 0~95%(Humidity)
